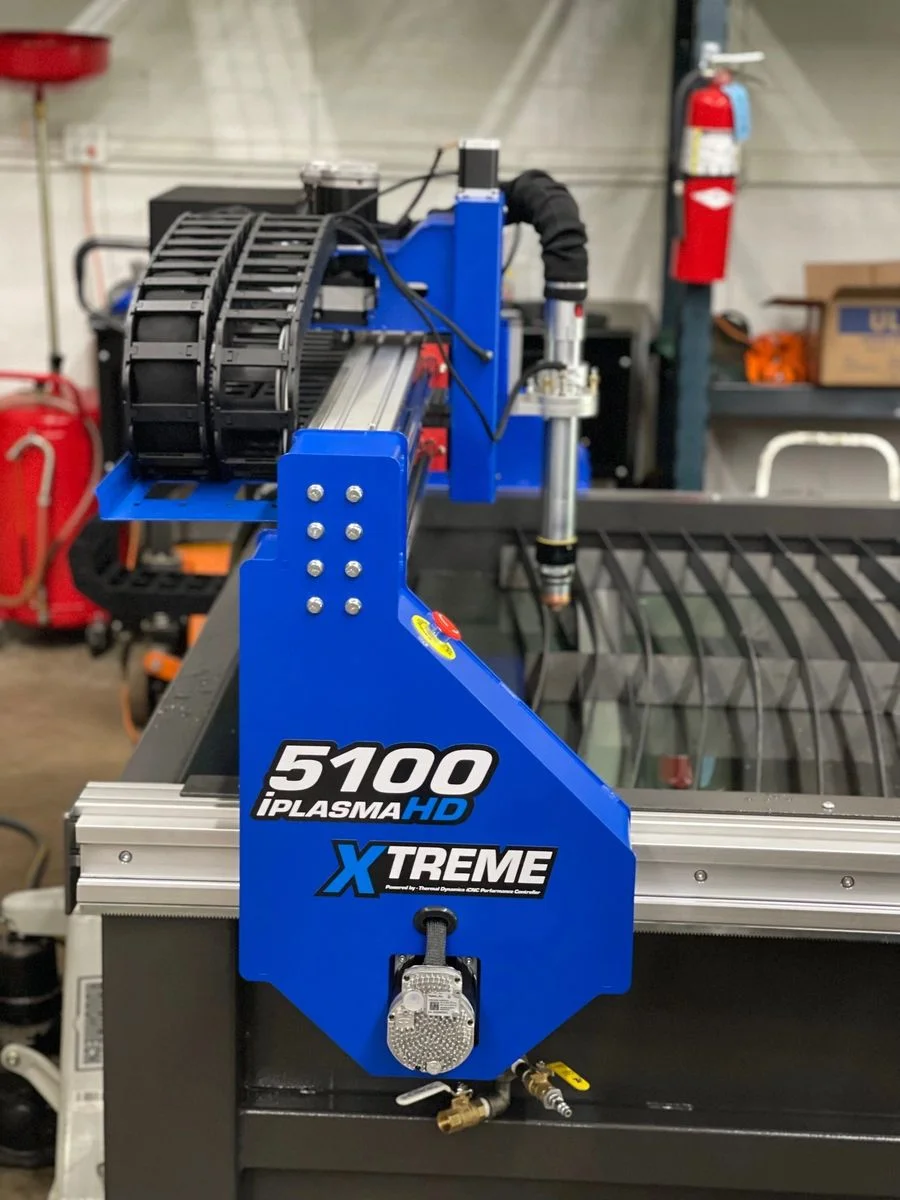

iPlasma XTREME 5100 CNC Plasma Table - High Definition
Fully Welded Powder-Coated Frame
4" Water Bed and Slats Design

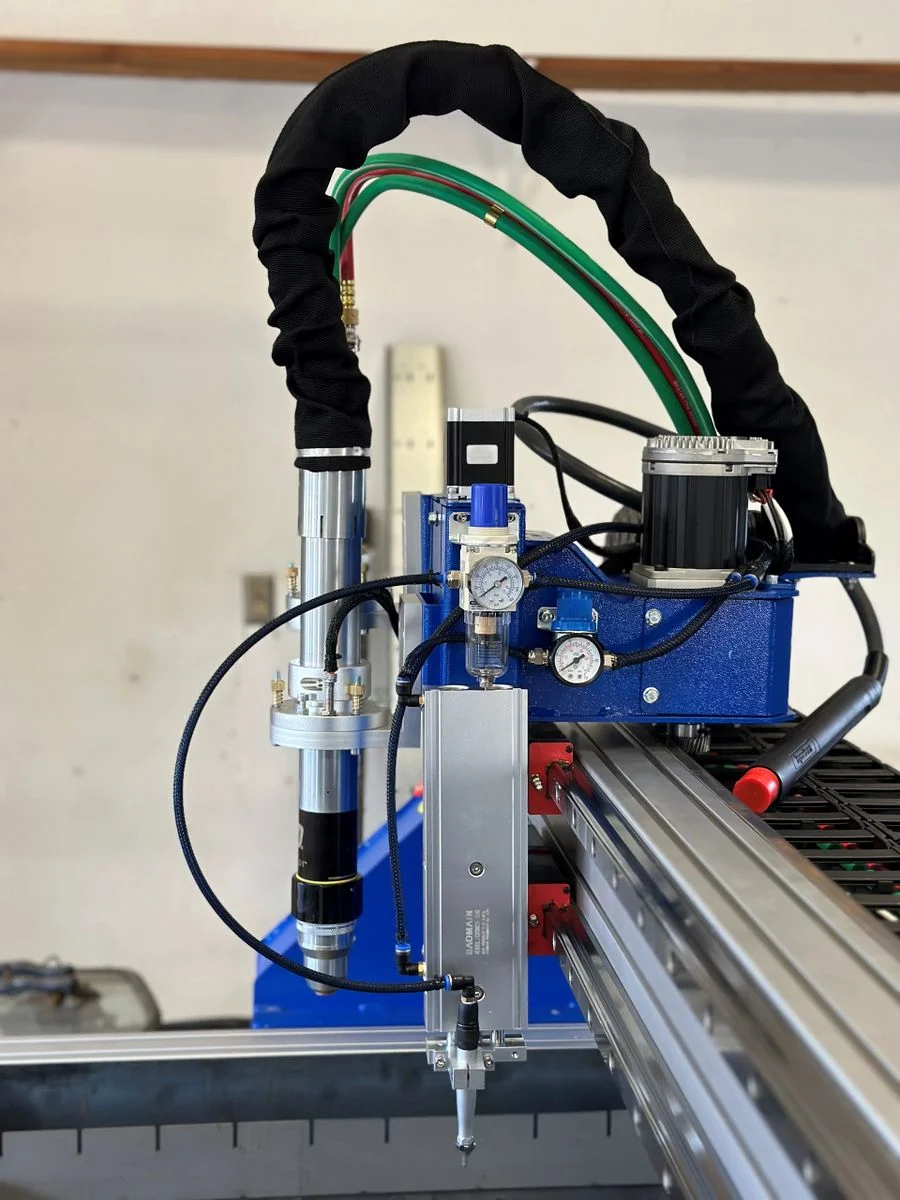

Collision Detection Torch Mount
Price
Price Available on Request
Professional Installation Available
1 Year Warranty
Lifetime Technical Support
Technical Specifications at a Glance
Detailed technical specifications for the iPlasma XTREME 5100 CNC Plasma Table to help you make an informed decision.
Component
Specification
Frame Construction
Fully Welded and Powder-Coated Frame
Drive System
Rack and Pinion Drive
Water Bed
4" Water Bed and Slats
Motors
Nema 34 Integrated Closed Loop Stepper Motors 1050 in/oz
X-Axis
Dual Rigid Rail with Wipers on 3"x 6" Beam
Y-Axis
Dual Drive on SG-35 Linear Rail
Z-Axis
Nema 23 Stepper Motor and 8" Travel Ball Screw
Controller
Thermal Dynamics Control Station Standard
Country of Origin
🇺🇸
USA
Engineered for Precision and Performance
The iPlasma XTREME 5100 delivers superior cutting performance with advanced features designed for professional metal fabrication and manufacturing.
Durable Construction
Fully welded and powder-coated frame ensures long-lasting performance and stability for consistent precision cutting operations.
Advanced Drive System
Rack and pinion drive with planetary gear reduction provides smooth, accurate movement and exceptional repeatability for all cutting operations.
Water Bed Design
4" water bed and slats system reduces smoke, dust, and material warping while extending consumable life and improving cut quality.
High-Power Motors
Nema 34 integrated closed loop stepper motors with 1050 in/oz torque deliver precise control and reliable performance for demanding applications.
Collision Detection
Advanced collision detection torch mount with proximity sensors protects equipment and ensures safe operation during automated cutting processes.
Professional Control
Thermal Dynamics control station provides intuitive operation and professional-grade features for optimal cutting performance and efficiency.
Frequently Asked Questions
What software is compatible with this CNC table?
The table comes with MyPlasma CNC Motion Control Software, which is Windows 11 compatible with USB interface. It includes built-in CAM capabilities and supports various file formats for easy design import and cutting operations.
What is the cutting area and table size?
The iPlasma XTREME 5100 features a 5' x 10' cutting area, providing ample workspace for large projects while maintaining precision and accuracy throughout the entire cutting envelope with side load capability for material handling.
What kind of technical support is available?
Cutting Edge Plasma provides lifetime technical support with direct communication to sales and technical support teams. You can reach support at (952) 500-3353 for installation assistance, training, troubleshooting, and ongoing maintenance support.
Is installation and training included?
Professional installation services are available, and comprehensive training is provided to ensure you get the most from your CNC plasma table. Our team will help you set up the equipment and train your operators for optimal performance and safety.
